DC cabinet air conditioner can be widely deployed in telecommunication outdoor base stations, power state outdoor cabinet, outdoor LED screen, where require the temperature level below than 35 degree situation. SANDA provides the DC and AC power enclosure air conditioner input type products according different power input.
Our outdoor cabinet air conditioners are engineered to provide reliable, efficient cooling for critical electrical and telecom equipment in harsh outdoor environments. Featuring IP55-rated waterproof and dustproof protection, these units ensure stable operation even in extreme weather conditions, protecting sensitive electronics from overheating and environmental damage.
Key Features
✓
IP55 Protection
Waterproof and dustproof design for reliable outdoor performance.
✓
Wide Temp Range
Operates efficiently in extreme conditions from -20°C to +55°C.
✓
Energy Efficient
High COP compressors and intelligent temperature control systems.
✓
Compact & Durable
Stainless steel construction with specialized anti-corrosion coatings.
✓

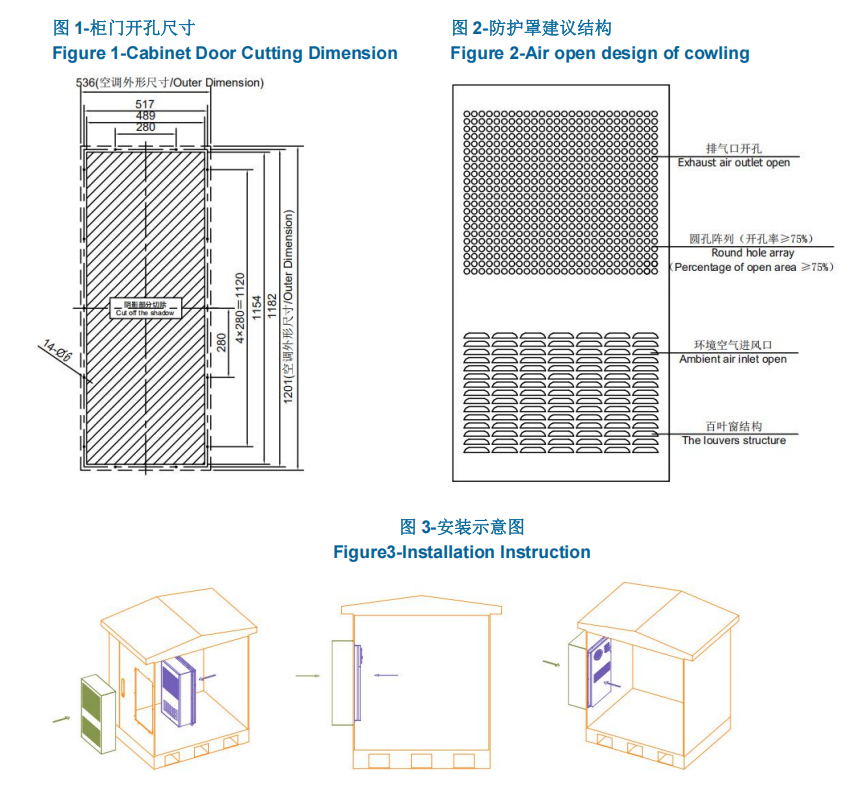

Easy Installation
Flexible mounting options: wall-mounted or integrated into cabinet designs.
✓
Smart Monitoring
Built-in alarms and remote monitoring for proactive maintenance.
Applications
Telecom Base Stations
Electrical Distribution
Industrial Control Panels
Solar & Battery Storage
Model No.
SDCA-030N/D/D
Mounting Method
Semi-embedded Mounting
Cooling Capacity
3000W@L35/L35
Power Consumption
960W@L35/L35
Cooling Capacity
1800W@L35/L55
Power Consumption
1350W@L35/L55
Internal Airflow
850m³/h
Working Temp Range
-40℃- 55℃
Max Noise Level
65dB(A)
IP Grade
IP55
Net Weight
60Kg
Refrigerant
R134a
Dimensions(mm)
1154×489×225（HWD）
Power Supply
48VDC
Technical Specifications - Model SDCA-003N/D/A
Outdoor Cabinet Air Conditioner
Reliable Cooling for Harsh Outdoor Environments
TECHNICAL SPECIFICATIONS - MODEL SDCA-003N/D/A
Model No.
SDCA-003N/D/A
Mounting Method
Semi-embedded Mounting
Power Supply
230VAC±15% 50Hz/60Hz
Cooling Capacity
300W @ L35/L35
Power Consumption
170W @ L35/L35
Dimensions (H×W×D)
550 × 320 × 175 mm
Cooling Capacity
190W @ L35/L55
Power Consumption
200W @ L35/L55
Internal Airflow
120 m³/h
Working Temp Range
-40°C ~ 55°C
Max Noise Level
60 dB(A)
IP Grade
IP55
Refrigerant
R134a
Net Weight
15 Kg
Heater
Optional (500W)
Surface Treatment
Outdoor type powder coating, standard color: RAL7035
