DC48V 2500W Cabinet Air Conditioner for outdoor

DC48V 2500W Cabinet Air Conditioner for outdoor

Since the product design and installation are originated from household air conditioners, DC cabinet air conditioner can be widely deployed in telecommunication outdoor base stations, power state outdoor cabinet, outdoor LED screen, where require the temperature level below than 35 degree situation. SANDA provides the DC and AC power enclosure air conditioner input type products according different power input.
Size： 1154x489x225(mm,HxWxD)
Brand： SANDA
 Inquiry
Descriptions
Parameters

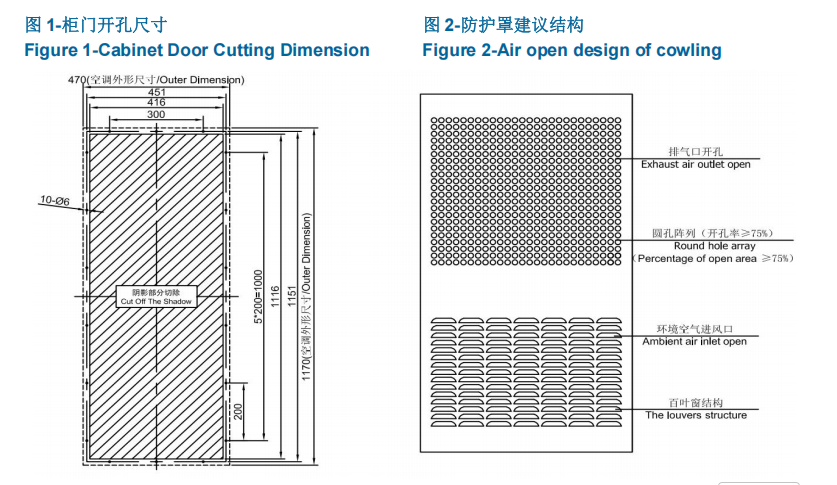

Installation
Maintaintance
Outdoor Cabinet Air Conditioner


Outdoor Cabinet Air Conditioner

Reliable Cooling for Harsh Outdoor Environments

Product Overview

Our outdoor cabinet air conditioners are engineered to provide reliable, efficient cooling for critical electrical and telecom equipment in harsh outdoor environments. Featuring IP55-rated waterproof and dustproof protection, these units ensure stable operation even in extreme weather conditions, protecting sensitive electronics from overheating and environmental damage.

Key Features
✓
IP55 Protection

Waterproof and dustproof design for reliable outdoor performance.

✓
Wide Temp Range

Operates efficiently in extreme conditions from -20°C to +55°C.

✓
Energy Efficient

High COP compressors and intelligent temperature control systems.

✓
Compact & Durable

Stainless steel construction with specialized anti-corrosion coatings.

✓
Easy Installation

Flexible mounting options: wall-mounted or integrated into cabinet designs.

✓
Smart Monitoring

Built-in alarms and remote monitoring for proactive maintenance.

Applications
Telecom Base Stations
Electrical Distribution
Industrial Control Panels
Solar & Battery Storage


Technical Specifications - Model SDCA-003N/D/A


Outdoor Cabinet Air Conditioner

Reliable Cooling for Harsh Outdoor Environments

TECHNICAL SPECIFICATIONS - MODEL SDCA-030N/D/D
Model No.
SDCA-030N/D/D
Mounting Method
Side Mounting
Power Supply
48VDC 50Hz/60Hz
Cooling Capacity
3000W @ L35/L35
Power Consumption
960W @ L35/L35
Dimensions (H×W×D)
1154 × 489 × 225 mm
Cooling Capacity
1800W @ L35/L55
Power Consumption
1350W @ L35/L55
Internal Airflow
700 m³/h
Working Temp Range
-40°C ~ 55°C
Max Noise Level
65 dB(A)
IP Grade
IP55
Refrigerant
R134a
Net Weight
60 Kg
Heater
Optional (1000W)
Surface Treatment
Outdoor type powder coating, standard color: RAL7035
